Automatic Ring Bending Machine For Spiral Wound Gasket Ring

Automatic Ring Bending Machine For Spiral Wound Gasket Ring, the machine has good condition & long-time working life

Send Inquiry

Product Description

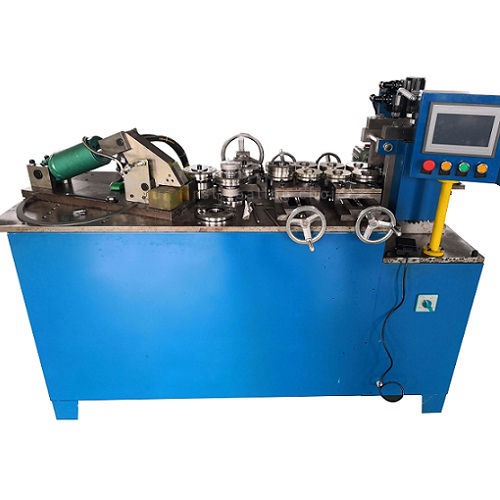

Automatic Ring Bending Machine for spiral wound gasket ring - SWR09

Automatic ring bending machine for spiral wound gasket ring is used for producing φ150 to φ3000 mm diameter of spiral wound gasket metal rings, and the metal ring width is from 6 mm to 50 mm. The automatic ring bending machine is very easy to operate, it is operated completely by PLC and touch screen, the implementation of digital input parameters, just put the size numbers in the Touch screen, the right gasket metal ring finished out, and it is with automatic shear cutting system. So the machine has high pass rate, fast producing processing speed.

Ring thickness: 2 mm, 3 mm and 4 mm.

Technical Specification

Description	Value	Unite
Operation Type	Automatic	-
Bending ring thickness	2, 3, 4	mm
Min inner diameter of ring	Φ 150	mm
Max outer diameter of ring	Φ 3000	mm
Tolerance of gasket	+/- 0.25	mm
Total Power	4	kw
Power voltage	220/380 as need	V
Net weight Max	1250	kgs
Machine dimension	20095100	cm
