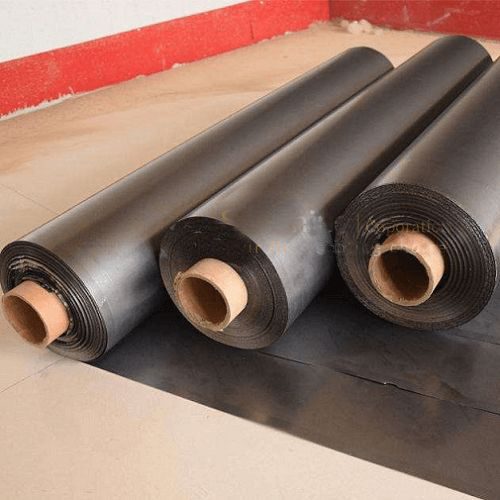

High quality Flexible Graphite Sheet Gasket is offered by China manufacturers Kaxite. Buy Flexible Graphite Sheet Gasket which is of high quality directly with low price. Choose ISO 9001 high quality Flexible Graphite Sheet Gasket in best price and short delivery time
High quality Flexible Graphite Sheet Gasket is offered by China manufacturers Kaxite. Buy Flexible Graphite Sheet Gasket which is of high quality directly with low price.
We are the one of China leading manufacturer and supplier of flexible graphite sheet reinforced with tanged SS 316L inserted, reinforced flexible graphite sheet with tanged SS 316L inserted is the flexible graphite sheet reinforced by a tanged 0.1mm thickness stainless steel 316L. These sheets are are calendered with metal SS 316L reinforcements to improve handling and blow. Flexible graphite sheet reinforced with tanged SS 316L inserted allows the material to achieve substantially higher dynamic loading giving it a high blow out resistance, improved tightness and mechanical strengthhence and provides an excellent gasket material for high temperature, high pressure applications. Properties are highly anisotropic, particularly in respect to electrical and thermal conductivity.
Testing Items | Testing Method | Result | Unite |
Density | ASTM F1315 | 1.2 | g/cm3 |
Carbon content | - | ≥ 98 | % |
Sulfur content | ASTM C816 | <1200 | ppm |
Ash content | ASTM C561 | 2 | % |
Chlorine content | <ASTM F1277 | <50 | ppm |
Compressibility |
ASTM F36A-66 | 35 | % |
Recovery |
ASTM F36A-66 | 18 | % |
Tensile Strength | ASTM F152 | 5000 | psi |
Residual Stress |
DIN 52913 300°C |
>48 |
mpa |
M factor | - | 2.5 | - |
Y factor | - | 3000 | psi |
