Flexible Graphite Sheet Reinforced with Tanged SS 316L Inserted

Product Description

Flexible Graphite Sheet Reinforced with Tanged SS 316L Inserted

Kaxite is a leading China Flexible Graphite Sheet Reinforced with Tanged SS 316L Inserted manufacturers, suppliers and exporter.

We are the one of China leading manufacturer and supplier of flexible graphite sheet reinforced with tanged SS 316L inserted, reinforced flexible graphite sheet with tanged SS 316L inserted is the flexible graphite sheet reinforced by a tanged 0.1mm thickness stainless steel 316L. These sheets are are calendered with metal SS 316L reinforcements to improve handling and blow. Flexible graphite sheet reinforced with tanged SS 316L inserted allows the material to achieve substantially higher dynamic loading giving it a high blow out resistance, improved tightness and mechanical strengthhence and provides an excellent gasket material for high temperature, high pressure applications. Properties are highly anisotropic, particularly in respect to electrical and thermal conductivity.

Applications of Flexible Graphite Sheet Reinforced with Tanged SS 316L Inserted

flexible graphite sheet reinforced with tanged SS 316L inserted is an ideal material for most industrial fluid sealing applications. As the tanged stainless steel 316L makes the graphite sheets are punched with small holes, which are widely used in furnace to release gas. It is typically used for head gasket and exhaust gasket of combusition enginesand pressinginto all kinds of sealing gaskets used in Automotive, Heat Treatment and also Furnaces.

Resistance to Media:

flexible graphite sheet reinforced with tanged SS 316L inserted is good at using in the media such as steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.

Types of Flexible Graphite Sheet Reinforced with Tanged SS 316L Inserted

T300 - Reinforced Flexible Graphite Sheet with 0.19 mm thickness flat SS 316L wire mesh
T305 - Reinforced Flexible Graphite Sheet with 0.19 mm thickness flat SS 304 wire mesh
T308 - Reinforced Flexible Graphite Sheet with 0.19 mm thickness flat SS 321 wire mesh
T310 - Reinforced Flexible Graphite Sheet with 0.05 mm thickness flat SS 316L foil
T315 - Reinforced Flexible Graphite Sheet with 0.05 mm thickness flat SS 304 foil
T320 - Reinforced Flexible Graphite Sheet with 0.1 mm thickness Tanged SS 316L
T325 - Reinforced Flexible Graphite Sheet with 0.1 mm thickness Tanged SS 304
T330 - Reinforced Flexible Graphite Sheet with 0.1 mm thickness Tanged SS 321
T335 - Reinforced Flexible Graphite Sheet with 0.20 mm thickness Tanged Tinplate

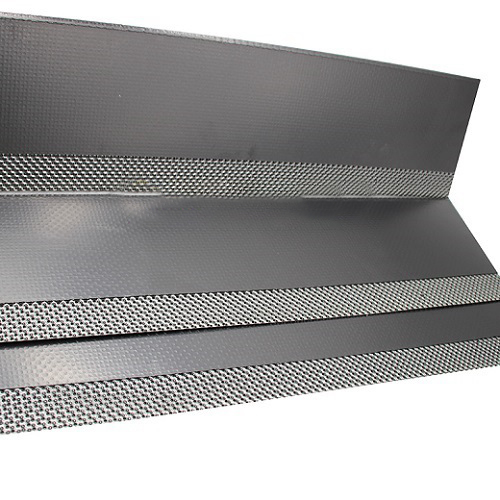

0.1mm Tanged SS316L or SS 304 Reinforced graphite sheet

Typical Physical Properties of Graphite Sheet with Tanged SS 316L Inserted

Testing Items	Testing Method	Result	Unite
Density	ASTM F1315	1.2	g/cm3
Carbon content	-	≥ 98	%
Sulfur content	ASTM C816	<1200	ppm
Ash content	ASTM C561	2	%
Chlorine content	<ASTM F1277	<50	ppm
Compressibility	ASTM F36A-66	35	%
Recovery	ASTM F36A-66	18	%
Tensile Strength	ASTM F152	5000	psi
Residual Stress	DIN 52913 300°C	>48	mpa
M factor	-	2.5	-
Y factor	-	3000	psi
