Full Automatic Kammprofile Grooving Gasket Machine
With 20+ years' experience of producing CNC Full Automatic Kammprofile Grooving Gasket Machine, our gasket machines has good condition & long-time working life
Send Inquiry
Product Description

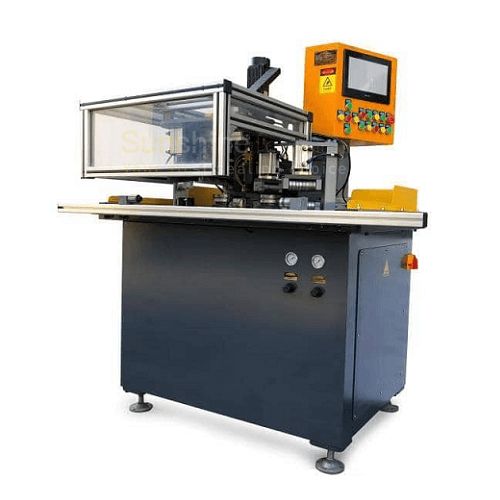

Full Automatic Kammprofile Grooving Gasket Machines - CNC600
Full automatic kammprofile grooving gasket machine is commonly used for making Kammprofile gasket which is a specialist securing devices to help you to minimize the production time as well as quite simple to operate with PLC. Thus it can generate huge-diameter gaskets for example Kammprofile, serrated gasket, the device procedure starts coming from a primitive circular toned metallic engagement ring, spindled horizontally and machined by a cutting tool which eliminates fabric from the band alone. Additionally, it can Inside Diamond ring beveling and outside engagement ring grooving for spiral injury gasket along with other advanced features.It provides attributes of CNC lathe, and backed up by a unique created fast clamping program. After setting the info about the PLC, the owner only have to position the workpiece on the function table, and hit AUTO botton, the full automatic kammprofile grooving gasket machine will total the full urgent automatically as the environment details.
In the program touchscreen, preset the day for needed kammprofile gasket, through the control of PLC, the factor rate equipment will drive the workpiece to rotate at high speed, at the same time, the servo method move the cutter to groove the top of the workpiece. and unique layout fast clamping system can fit various size with width of gasket, don't need anymore custom made clamp for various styles.
Technical Data Sheet
| Description | Value | Unite |
| Operation Type | CNC | - |
| Gasket thickness | 2 - 4 | mm |
| Metal Ring width | 90 | mm |
| Tolerance of gasket |
+/- 0.2 |
mm |
| Power | 5 | kw |
| Power voltage | 380 | V |
| Net weight Max | 850 | kgs |
| Machine dimension | 160*150*90 | cm |
