40% Bronze Filled PTFE Teflon Bearing Guide Strip

Find a huge selection of 40% Bronze Filled PTFE Teflon Bearing Guide Strip from China at Kaxite. We produces a full range of PTFE Bearing Guide Strip Tape made from 40%, 50% and 60% bronze filled with PTFE. Different thickness and width PTFE Guide tape in large quantity

Send Inquiry

Product Description

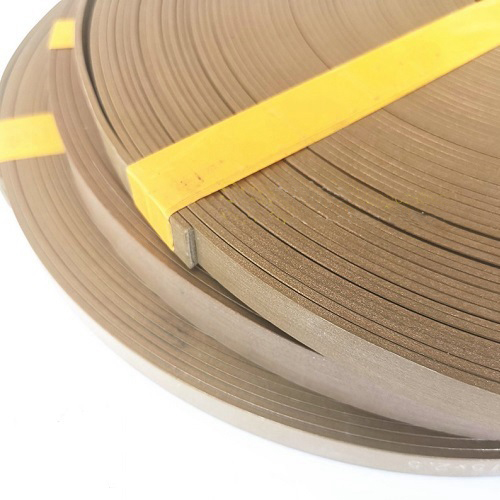

40% Bronze Filled PTFE Teflon Bearing Guide Strip - G150

40% bronze filled PTFE Teflon bearing guide strip due to the low friction of PTFE teflon, corrosion strength, thermal firmness as well as other excellent qualities. Along with 40% bronze filled PTFE Teflon bearing guide strip has been regularly used in friction, sealing part, particularly in the corrosive medium, along with the place where possesses problem is often hard to be settled by common precious metal and various other non-metallic products. The flexibility plus toughness of PTFE make your ptfe guide strip become fantastic sealing materials, especially when it is further with 40%, 50% or 60% bronze powder filler, make it have the greater bearing total capacity, thermal mechanical stableness, abrasion strength and the minimize PV value.

40% bronze filled PTFE Teflon bearing guide strip represents a guiding job, in order in order to avoid the cylinder along with piston rod wear, very wear-resistant, lower friction, heat resistant, resistant to chemical corrosion, allow any foreign body is baked into the guide wear ring, in order to avoid the particles on the cylinder and seal loss, could process vibration functionality, and has superb wear amount of resistance as well as good dry dynamic characteristics

Material: PTFE with 40% Bronze powder
Temperature: -60°C to +200°C
Elongation at break: ≥ %160
Standard denstity: 2.5 -3.2g/cm3
Tensil strength: ≥14 mpa

Advantages of 40% Bronze Filled PTFE Teflon Bearing Guide Strip

40% bronze filled PTFE Teflon bearing guide strip has excellent wear resistance and good performance of the dry line and it is compatible with most of the fluids in contact. It also has low friction of PTFE material, is easy assembly, low friction coefficient, and obtains the higher bearing capacity, very good temperature resistance. 40% bronze filled PTFE Teflon bearing guide strip has very good corrosion resistance and very good resistance to chemical corrosion, durability usage.

All Types of PTFE Guide Strips

G155 - 50% Bronze filled PTFE Guide Wear Strip Tape
G160 - 60% Bronze filled PTFE Guide Wearing Tape
G165 - 23% Carbon with 2% Graphite PTFE Guide Wear Strip
G170 - 15% Glass fiber and 5% Mos2 Filled PTFE Guide Strip
G175 - 15% Graphite Filled PTFE Guide Strip Tapes

Physical Properties of 40% Bronze Filled PTFE Teflon Bearing Guide Strips

Properties	Test Methods	Typical Value	Test Unit
Density	ASTM D795	3.2	g/cm3
Hardness Shore D	ASTM D2240	62	Sh.D
Tensile Strength	ASTM D4745	22	Mpa
Elongation at break 23°C	DIN D4745	230	%
Coefficent of dynamic friction	ASTM D1894	0.2	-
Flamability	UL 94	V-0	-
Compressive Strength "C"	ASTM D695	1200	psi
Working temperature	-	-60 to 200	°C
