Pure Dry PTFE Braided Packing

Product Description

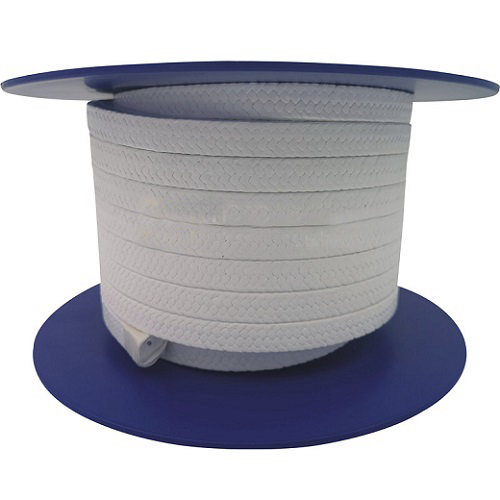

Pure Dry PTFE Braided Packing - Style 2005

Pure dry PTFE braided packing is made of high quality pure dry expanded PTFE yarn without any PTFE dispersion and oil lubrication, but with greatly enhanced ability to seal high speed shafts with the addition of inactive and heat resisting agents. Pure dry PTFE braided packing is recommended for chemical engineering, foodstuff, pharmaceutic where contamination is not allowed. Also it can be applied to seal all chemicals except molten alkali metals. And the pure dry PTFE packing temperature range is from -260°C to 260°C (-400° to 500°F)

Advantages of Pure Dry PTFE Braided Packing

As Pure dry PTFE braided packing is a kind of braided gland packing without any PTFE dispersion and oil lubrication, so it is very clean and can be used for food and pharmaceutic industry. It can be used in most chemicals, well suited for difficult sealing applications and mostly useful in slower shaft speed

Applications and Service of Pure Dry PTFE Braided Packing

Style 2005 pure dry PTFE braided packing is commonly used in valves and lower shaft speed applications. It is resistant to most chemicals, aggressive fluids, gases and solvents, with the exception of molten alkali metals. And it is mostly used in those application like pump, valve, vessles of corrosive medium in chemical, food and drink industry, parmceutical industry, food processing, paper mills and Fiber plant.

Not suitable for:

Pure dry PTFE braided packing not suggested for using for molten alkalimetals and fluorine compounds at high temperatures and pressures

General Specification

Temperature		Pressure Limit
Min Temp	- 260 °C	Static	280 bar
Max Temp	260 °C	Rotating	30 bar
Density	1.4 g/cm3	Reciprocating	160 bar
Shaft Speed	12 m/s	Ph Value	0 - 14

Package and Size:

The size for pure dry PTFE braided packing we can make is from 3 mm to 50 mm. The PTFE braided gland packing can be 2 kgs, 5 kgs and 10 kgs per roll, also can be packaged as customer's need.
