Spiral Wound Gasket Metal Ring Bending Machine

With 20+ years' experience of producing Spiral Wound Gasket Metal Ring Bending Machine, our ring bending machines has good condition & long-time working life

Send Inquiry

Product Description

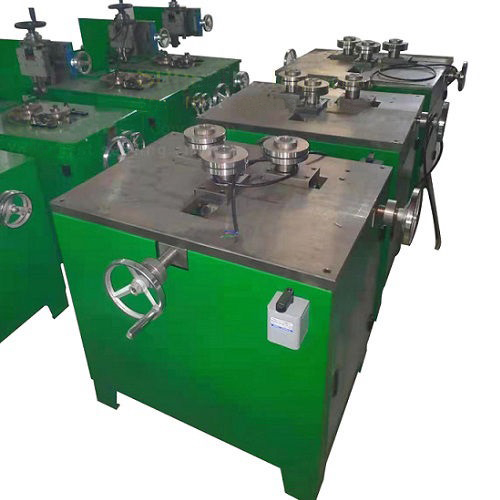

Spiral Wound Gasket Metal Ring Bending Machine - SWR08

Spiral wound gasket metal ring bending machine is needed for making spiral wound gasket Inner ring and outer ring, the spiral wound gasket ring width scale is below 40 mm. Ring bending machine is designed to create rings in little number. About three rollers are all driving roller. All rings of different sizes will be accomplished in 1 time and work continually. Providing metallic strip into driving roller and alter appropriate posture, the machine will produce rings according to ID and OD of rings.

Ring Thickness: 2 mm, 3 mm, 4 mm
Ring Width: 6mm to 40 mm.

Technical Specification

Description	Value	Unite
Operation Type		-
Bending ring thickness	2, 3, 4	mm
Min inner diameter of ring	Φ 200	mm
Max outer diameter of ring	Φ 4000	mm
Tolerance of gasket	+/- 0.2	mm
Total Power	2.2	kw
Power voltage	220/380 as need	V
Net weight Max	270	kgs
Machine dimension	986891	cm
