Spiral Wound Gasket with Ribs for Heat Exchanger
As the professional manufacturers, Kaxite would like to provide you high quality Spiral Wound Gasket with Ribs for Heat Exchanger. And we will offer you the best after-sale service and timely delivery. Below is more information about spiral wound gasket for automobile car exhaust. For the development of sealing technology, the spiral wound gasket for automobile car exhaust tend to be one good economical seal.
Send Inquiry
Product Description

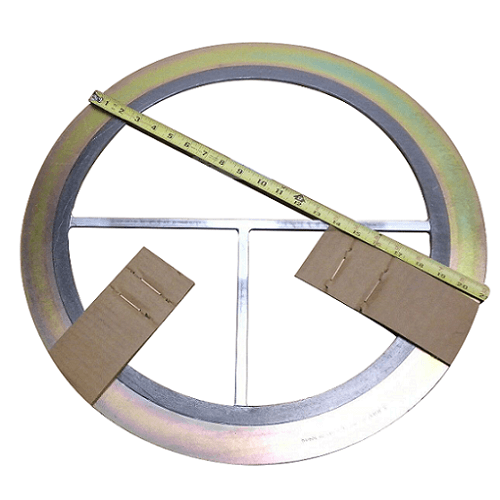

Spiral Wound Gasket with Ribs for Heat Exchangers - Style HE 500
Style HE 500 Spiral Wound Gasket with Ribs for Heat Exchangers was specially designed for heat exchangers, it is developed from spiral wound gasket for high temperature. This gasket can be with inner and outer ring or without. The spiral wound gasket with ribs for exchangers used for heat exchangers which need ribs. The gasket main construction is standard spiral wound gasket body, and the rib usually made of single or double jacketed style.Main Application
Spiral Wound Gasket with Ribs for Heat Exchangers tend to be primarily designed for TEMA male and female flanges and they are custom built to accommodate the design and style conditions of specific heat exchanger vessels. And except for heat exchangers, it can be used for Boilers, Reactors, Large Pressure Vessels. These kind of gaskets are available in a large selection of materialsThe gasket Materials
• 304 and 316L metal winding standard• Other exotic and super alloys available
• Graphite fillers can bear temp up to 900°F
• Vermiculite 835 fillers can bear temp up to 1800°F
• PTFE fillers can bear temp up to 500°F
Special advantages for this gasket
• The outer wound nose to be sure accurate sealing element location in the flange recess.• A spiral wound sealing element to be certain a positive seal under changing temperature and pressure situations.
• A solid metallic inside ring to shield the sealing factor and act as a compression stop. As a possible optionally available supplemental, inner rings can even be supplied with nylon location screws to protect the gasket to the flange on installation.
• Can be provided with pass partition rib bars in a different configuration. Pass Rib bars are properly secured to the inner ring and can be provided in either solid stainless steel or double jacketed construction
How to Order a Spiral wound gasket with ribs for heat exchangers
As the gasket has no standard size specification for reference, usually all custom made accoding to customers' requirement. So when order pls offer me detailed drawing or sizes. Hot Tags: Spiral Wound Gasket with Ribs for Heat Exchanger, China, Manufacturers, Suppliers, Factory, Wholesale
