Aramid Fiber Packing Impregnated with PTFE Lubricant

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Aramid Fiber Packing Impregnated with PTFE Lubricant, Kaxite looks forward to cooperating with you. Expanded PTFE Graphite Packing with Aramid Yarn Corner is a combination packing, with tough but smooth aramid fibre yarn at the corners, ePTFE graphite solid yarn with a break-in lubricant at the faces

Send Inquiry

Product Description

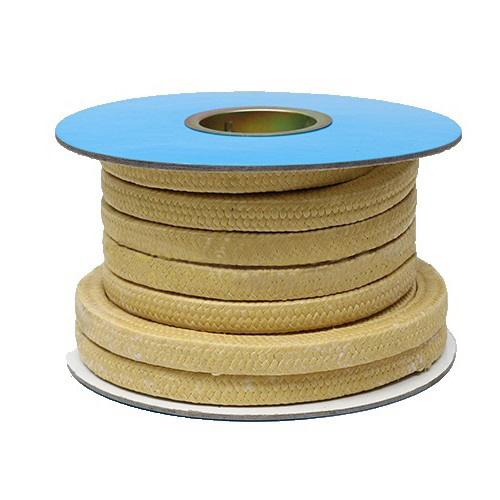

Aramid Fiber Packing Impregnated with PTFE Lubricant- Style 3003

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Aramid Fiber Packing Impregnated with PTFE Lubricant, Kaxite looks forward to cooperating with you.

Aramid Fiber Packing Impregnated with PTFE Lubricant is braided from premium quality, high strength kevlar aramid fiber, as well as every strand yarn is impregnated with a Teflon PTFE suspensoid for quick break in and straightforward run in. This specific high tensile strength aramid fiber yarn develops a resilient long lasting packing capable of withstanding severe abrasives and pressure fluids.

Applications

While mainly created as a rotary water pump packing, Aramid fiber packing impregnated with PTFE lubrican is also intended for valves and piston pumps, mixers and reactors in the following industries: pulp and paper, pharmaceutical, food, sugar, chemical and petro-chemical, power stations, steel mills and many more. Also ideal as anti-extrusion rings in combination with softer packing.

Application media

The chemical resistance of Aramid together with the PTFE impregnation allows this packing to be used in connection with most chemicals (except very corrosive ones), water, steam, oils, solvents, etc., while its extreme abrasion resistance makes it ideal for use with abrasive sand, slurry and other gritty media.

Advantages

Aramid fiber packing impregnated with PTFE lubricant has excellent abrasion resistance, long service life with minimal shaft wear, it is resilient and responsive in operation and extremely durable and abrasion resistant packing suitable for a wide variety of media in many different industries. Suitable for a very wide range of media

Technical Data Sheet of Aramid Fiber Packing

Temperature	-	Pressure Limit	-
Min Temp	- 100 °C	Static	300 bar
Max Temp	280 °C	Rotating	80 bar
Density	1.4 g/cm3	Reciprocating	200 bar
Rotary Pump Speed	19 m/s	Ph Value	0 - 14
