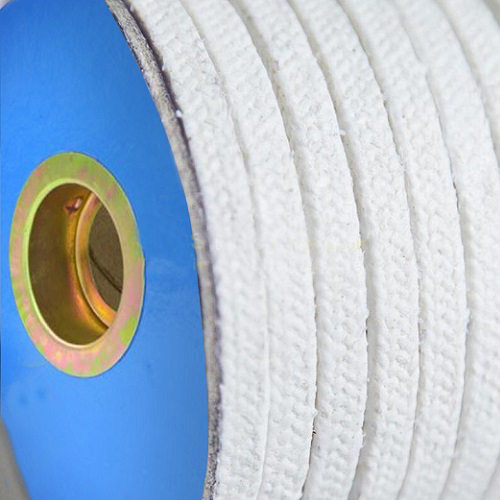

Meta-Aramid Nomex Fiber Packing with PTFE Dispersion

The Meta-Aramid Nomex Fiber Packing with PTFE Dispersion is not suitable for highly concentrated acids and caustics, alkali metals, oxygen.

Send Inquiry

Product Description

Meta-Aramid Nomex Fiber Packing with PTFE Dispersion - Style 3030

Meta-Aramid Nomex fiber packing with PTFE dispersion is braided from meta-aramid nomex yarn, each one strand yarn impregnated with PTFE-dispersion during the braiding operation, plus lubricated with an inert mineral essential oil for example silicone oil. The high technical toughness of the meta-aramid nomex fibre, combined with elaborate braiding operation, results in a smooth and flexible Meta-Aramid Nomex fiber packing with PTFE dispersion with great mechanical and chemical resistance. As a result of low coefficient of friction, shaft wear is largely prevented, actually at high shaft rates of speed. No abnormal heat build-up between the packing rings and the turning shaft; the packing runs cool, is still smooth as well as flexible, resulting in longer services life.

Use of Meta-Aramid Nomex Fiber Packing with PTFE Dispersion

Meta-Aramid Nomex fiber packing with PTFE dispersion is recommended for all kinds of pumps, mixers, agitators, reactors, etc. for the chemical industry, pulp and paper, sewage plants, and many more.

Meta-Aramid Nomex fiber packing with PTFE dispersion is also ideal for use with lots of media in a number of operations, which includes water, sewage, steam, solvents, chemicals, acids and caustics, along with standard service applications when a mechanically formidable packing is required.

Data Sheet

Temperature	-	Pressure Limit	-
Min Temp	- 150 °C	Static	210 bar
Max Temp	280 °C	Rotating	35 bar
Density	1.52 g/cm3	Reciprocating	150 bar
Rotary Pump Speed	17 m/s	Ph Value	3 - 11
