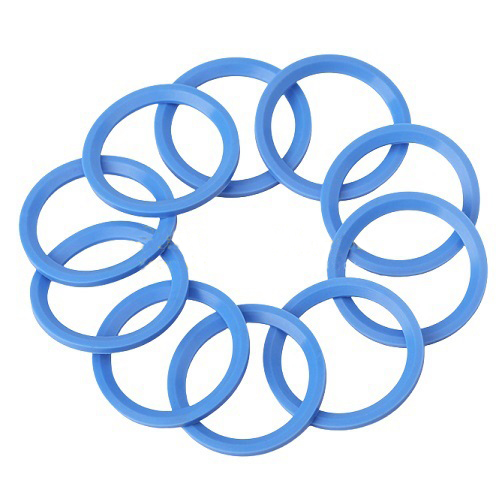

Fluorosilicone Rubber Gasket
  • Fluorosilicone Rubber GasketFluorosilicone Rubber Gasket

Fluorosilicone Rubber Gasket

We have over 10000 pcs Fluorosilicone rubber gasket in different size and hardness shore A. Contact us for more

Send Inquiry

Product Description

What exactly is Fluorosilicone Rubber Gasket?

Fluorosilicone rubber gasket consists of premium quality fluorosilicone ingredient with excellent quality, fluorosilicone rubber gasket has excellent amount of resistance and compound compatibility properties like great mechanised properties and effectiveness against organic and natural solvents, petroleum structured substance, oils, acidity, and alkaline chemical. So it is an ideal gasket seal in medical device, aerospace, vehicle market sectors program.

Fluorosilicone rubber also called FVMQ or fluorosilicone elastomer. We can make and provide top quality and enormous amount of fluorosilicone rubber gasket in a nutshell time. Any measurements can be produced as customers' need to have.

Advantages of Fluorosilicone Rubber Gasket

Fluorosilicone rubber gasket displays high along with low temperatures amount of resistance while offering outstanding mobility and greatest effectiveness against compression established Fluorosilicone rubberized gasket also offers weatherability and resistance to growing older and Kaxite, excellent potential to deal with UV and ozone and ideal Resistance to powers, fragrant and chlorinated chemicals, oxidizing chemical compounds, pet and veggie skin oils. It is perfect for extented immersion in gasoline, oils, solvent and hostile fluid.

Application of Fluorosilicone Rubber Gasket

Fluorosilicone rubber gasket is an ideal decision where need free of moisture warmth opposition. And can be used in stressful applications in which the extreme support temperatures will be required along with resistance to powers, coolants and fats, semiconductor ashing devices, aerospace industry where energizes, coolants and natural oils may be provide. It really is excellent to be utilized in gasoline methods, gasoline Injectors, fuel pumping systems and gas tank Seals.

The Propertie of Fluorosilicone Rubber Gasket

The hardness shore A of the fluorosilicone rubber gasket might be from 35 shoreline A to 80 Shore A. The density of fluorosilicone silicone gasket is around 1.2-1.45 g/cm³. Fluorosilicone rubber gasket temperature range: -60 to 230℃.

Exactly what is the Difference Between Silicone and Fluorosilicone?

the difference between silicone and fvmq fluorosilicone is that FVMQ fluorosilicone rubber reveal numerous commonalities with silicon. It maintains almost each of the features of VMQ.

Fluorosilicone rubber differentiates itself from silicone due to its additional advantageous attributes similarly to fluoro elastomer (FKM, FPM, Viton). Its capacity to gas resistance, solvent opposition, compound amount of resistance, and great gas level of resistance and solvent resistance are increased. But fluorosilicone has reduced atmosphere resistance than everyday silicon.

Fluorosilicone Compared to Viton (FKM, FPM, Fluorocarbon Rubberized)

Is Viton a fluorosilicone? FVMQ keeps some great things about FKM. Viton is really a manufacturer coined by DuPont for fluoroelastomer (FKM). Fluorosilicone has an advantage in decrease temperature ranges while FKM has an advantages in better temperature ranges. With respect to compression set up resistence, use opposition, Viton includes a significant advantage. Typically, fluorosilicone simply be restricted to static closing programs. When a material effective at both fixed and active sealing needed, FKM is a good decision. FFKM o-bands, seal and gasket have a superior thermal and substance opposition causing them to be perfect for substance programs.

Colour of Fluorosilicone Rubber Gasket

Why glowing blue is the typical color for fluorosilicone elastomer gasket, closes and o-bands? In fact fluorosilicone is in beige colour if without having ingredient. However the fluorosilicone is usually azure colored to the recognition between fluorosilicone utilizing elastomers. Black, blown and greyish shade are also typical. Better silicon can customized differnet colours for fluorosilicone fabric for your personal merchandise.

Fluorosilicone Rubber Gasket Properties

FVMQ Compound Hardness Shore A Rubber Color Temp range oC Elongation at break % Tensil Strength Mpa
F200 70 Blue -60 to 215 200 5.6
F201 75 Blue -60 to 214 160 5.5
F202 60 Blue -60 to 215 160 5.4
F203 40 Blue -60 to 215 350 7.2
