      Lens Ring Type Joint Gasket

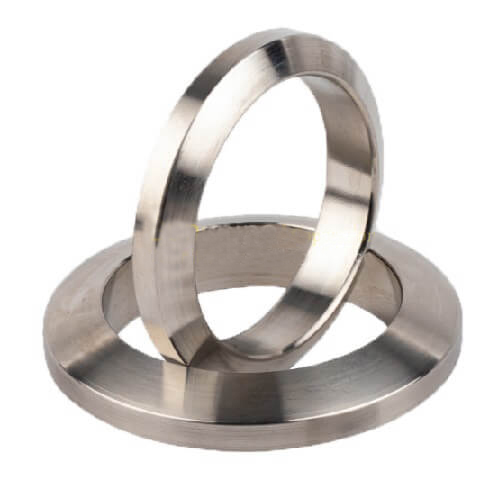

      • Lens Ring Type Joint GasketLens Ring Type Joint Gasket

      Lens Ring Type Joint Gasket

      Here will tell the dimension of the lens ring type joint gasket and how it is made and installed. we can offer you the all global standard Lens Ring Type Joint Gasket, quickest delivery.

      Send Inquiry

      Product Description

      Lens Ring Type Joint Gaskets - Style LRTJ 305

      A Lens Ring Type Joint Gasket is usually a line contact seal for use in high pressure piping devices as well as in pressure vessel heads. This lens cross section is often a spherical gasket surface area and requires specific machining on the flanges. In obtaining lens gaskets, complete drawings and product technical specs need to be supplied.

      With certain applications, the specifications of the high integrity metallic seal has usually lead to the selection of the actual lens ring type joint gasket, rather than much more generally known ring type joint alternative. The lens ring type joint gasket is covered solely by the DIN 2696 specifications. Having said that, ASME B16.5 and other flange styles might be customized to just accept the lens ring type joint gasket. The lens ring type joint gasket provides for a metallic gasket design incorporating spherical seating faces made to accommodate specifically mating flange recesses, offering the end user with a great sincerity, high-pressure and temperatures metallic to metal seal. Like all metal gaskets, the Lens Ring material ought to be given much softer when compared to the flange material, thereby assuring utilized compressive stress causes the elastic or plastic-type deformation of the lens ring type joint gasket and not to the particular flange sealing facial area. The circulation of high compressive loads brings about the spread out from the gasket facings, making sure over stressing of the gasket is stopped.

      In accordance with DIN 2696 common components are restricted to a range of specified carbon steels and stainless levels, even though alternative grades are offered upon require. Ningbo Kaxite needs a detailed drawing be supplied when ordering non regular lens ring type joint gasket.

      Lens Ring Type Joint Gasket Materials

      We use large range of metal materials to produce Lens ring type joint gasket, the materials can be Soft Iron, Low C/S, ss410, ss304, ss316, ss347, F5, F11, Copper, Aluminum, Inconel 600, Inconel 625, Incoloy 800, Incoloy 825, Monel 400, Titanium, Nikel 200, Hastelloy C276, Zirconium702

      Lens Ring Type Joint Gasket Application

      Lens Ring Type Joint Gasket is primarily used in the oil, gas, petrochemical and offshore industries. They are also commonly used on valves, pipe-work assemblies and vessel joints and are used to seal flanged connections subject to high pressures and temperatures.

      Lens Ring Type Joint Gasket Dimension


      Lens Ring Type Joint Gasket Dimension Size


      DN

      		d D1 a
      		r d3 x
      min. max. max d2
      Nominal Pressure PN 64 - 400
      10 10 14 21 7 17.1 25 18 5.7
      15 14 18 28 8.5 22 32 27 6
      25 20 29 43 11 34 50 39 6
      40 34 43 62 14 48 70 55 8
      50 46 55 78 16 60 88 68 9
      65 62 70 102 20 76.6 112 85 13
      80 72 82 116 22 88.2 129 97 13
      100 94 108 143 26 116 170 127 15
      125 116 135 180 29 149 218 157 22
      150 139 158 210 33 171 250 183 26
      Nominal Pressure PN 64 - 100
      175 176 183 243 31 202.5 296 218 28
      200 198 206 276 35 225 329 243 27
      250 246 257 332 37 277.7 406 298 25
      300 295 305 385 40 323.5 473 345 26
      350 330 348 425 41 368 538 394 23
      400 385 395 475 42 417.2 610 445 24
      Nominal Pressure PN 160 - 400
      175 162 177 243 37 202.5 296 218 21
      200 183 200 276 40 225 329 243 25
      250 230 246 332 46 277.7 406 298 25
      300 278 285 385 50 323.5 473 345 30
