RX Ring Type Joint Gasket

Style RX Ring Type Joint Gaskets are created as outlined by both API 6A and ASME B16.20 to suit API 6B and ASME B16.5 flanges. Type RX is a stress-energized adaptation of your standard Type R gasket.

Send Inquiry

Product Description

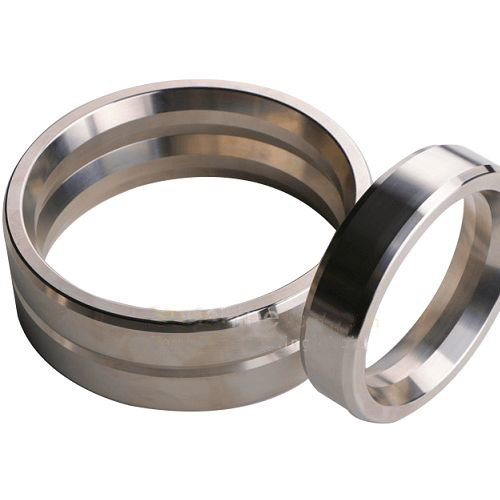

RX Ring Type Joint Gasket - Style RTJ 304

Design RX Ring Type Joint Gasket might be a pressure inspired adaptation from the regular Type R Diamond ring Form Joints Gasket. As the RX Ring Joint Gasket is designed to fit exactly the same groove style as a Common Style R Ring Joint Gasket, so These gaskets are exchangeable with oval or octagonal ring type joint gaskets used on API 6B flanges. Design RX Ring Joint Gaskets are equipped for demands around 15000 psi. Style RX Ring Joint Gasket is much more high priced compared to normal oval and octagonal Ring Joint Gasket, consequently much less well known. Design and style RX gasket carry out extraordinary in API 6B flanged blowout preventer piles.

Applications of RX Ring Type Joint Gasket

RX Ring Type Joint Gasket used for high pressure applications. The Style RX is designed to fit the same groove design as a standard style R making joints interchangeable. It is suitable for flat bottom groove flanges, natural Gas and Power Generation, Hydrocarbon Processing and Refining, Petrochemical Processing, Chemical Processing, Oil And Gas Industries.

Hardness

RX Ring Type Joint Gaskets are produced from smooth metal in order to be compressed after bolt tightening, hence generating excellent closing to avoid any type of fluid seepage. ASME B16.20 specifies optimum solidity for such gaskets.



RX Ring Type Joint Gasket Hardness


Ring Type Joint Gasket Marking

ASME B16.20 specifies the exterior work surface of each gasket shall bring the manufacturers' brand or recognition signature and gasket quantity prefixed by the characters R, RX, or BX, accompanied by the gasket substance id. Supplies will probably be known as demonstrated in Desk 2. The gasket shall even be noted by having an ASME B16.20 designation. The marking will be utilized so as to not harmfully distort the gasket or change the dependability of the close.


RX Ring Type Joint Gasket mark


Work surface Complete

ASME B16.20 specifies that Varieties R and RX diamond ring kind joints gaskets shall use a surface area finish off not rougher than 1.6 micro-meters roughness. Type BX Ring Type Joint Gasket shall possess a surface finish not rougher than 32 micro-inches roughness. Surface area accomplish shall have to do with the gasket-securing surface area. The closing surfaces in the engagement ring joints lines should be smoothly finished to 63 Micro-in . and also be free of objectionable ridges, device or chatter spots.

Style RX Ring Joint Gaskets Dimensions

Rx rtj dimension


RX Ring Type Joint Gasket Dimension chart
